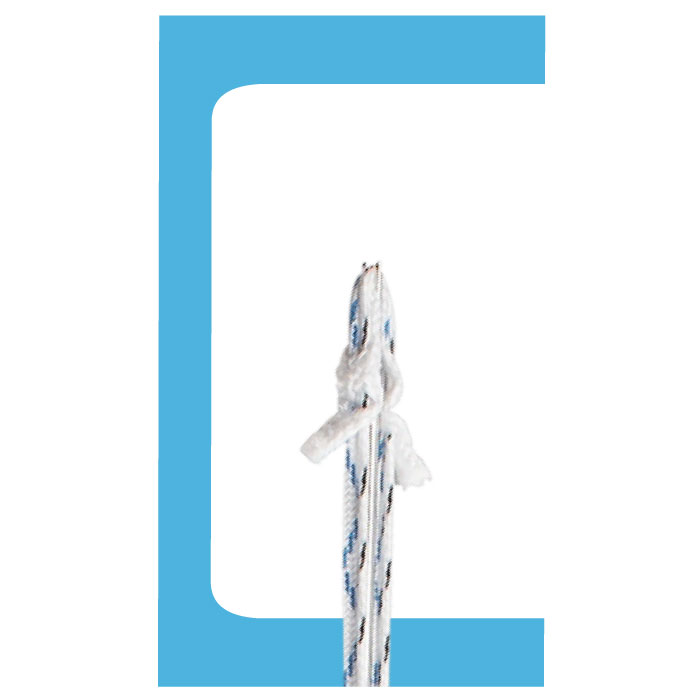

FIBERKNOT® Ligament Anchors

FIBERKNOT® is an all suture anchor and is composed of ultra-high molecular weight polyethylene (UHMWPE) suture.
It is available in 1.5 mm (single loaded) and 1.8 mm (double loaded) sizes.
FIBERKNOT® requires a smaller pilot hole compared to traditional anchors, minimizing bone removal and decreasing the overall anchor footprint, while still providing superior strength.
It is available with flexible driver for easy insertion through curved sleeve with combination of fiber and fiber tape.
The curved and straight sleeve of FIBERKNOT® enable delivery around a curve and perpendicular placement for posterior SLAP and inferior Bankart repairs.
The drill bit ensures accurate pilot hole placement with both straight and curved sleeves.
Anchor Dimensions: Dia. 1.5mm x Len. 15.0mm; Dia. 1.8mm x Len. 15mm
The average pull-out strength of FIBERKNOT® 1.5mm ligament anchor is 349.5N* and FIBERKNOT® 1.8mm ligament anchor is 410.1N*
List Item

Product Category	Description
10026	FIBERKNOT® Soft Ligament Anchor loaded with 1 pc Fiber, Dia. 1.5mm
10027	FIBERKNOT® Soft Ligament Anchor loaded with 1 pc Fiber Tape size 1.4, Dia. 1.5mm
10028	FIBERKNOT® Soft Ligament Anchor loaded with 2 pc Fiber, Dia. 1.8mm
10029	FIBERKNOT® Soft Ligament Anchor loaded with 1 pc Fiber and 1 pc Fiber Tape size 1.4, Dia. 1.8mm

Product Category	Description

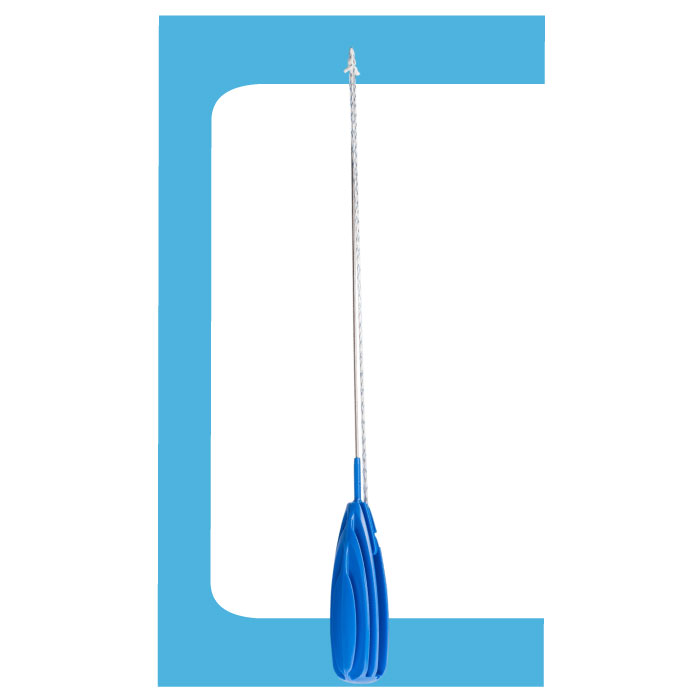

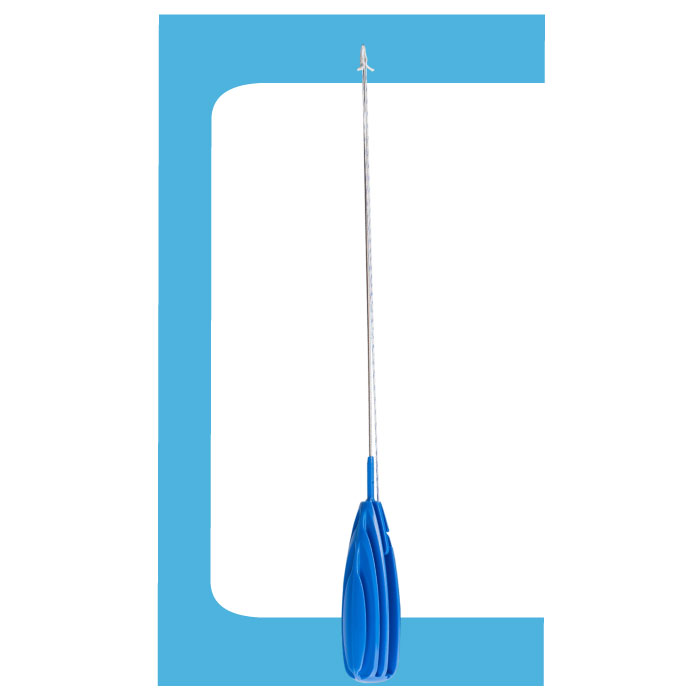

10040	Spear (Two-pronged), Straight for FIBERKNOT®Soft Ligament Anchor- Dia. 1.5mm & 1.8mm
10041	Spear (Two-pronged), Curved for FIBERKNOT® Soft Ligament Anchor – Dia. 1.5mm & 1.8mm
10042	Trocar, Straight for FIBERKNOT® Soft Ligament Anchor- Dia. 1.5mm & 1.8mm
10043	Trocar, Curved for FIBERKNOT® Soft Ligament Anchor- Dia. 1.5mm & 1.8mm
10045	Drill bit For FIBERKNOT® Soft Ligament Anchor-Dia. 1.5mm (SS)
10046	Drill bit For FIBERKNOT® Soft Ligament Anchor-Dia. 1.5mm (Nitinol)
10203	Internal Sleeve for Spear – 10040
10222	Internal Sleeve for Curved Spear – 10041
10219	Drill bit For FIBERKNOT® Soft Ligament Anchor-Dia. 1.8mm (SS)
10218	Drill bit For FIBERKNOT® Soft Ligament Anchor-Dia. 1.8mm (Nitinol)
